Egis XD NMEA 2000 Relays
Reference:
9811-4300B

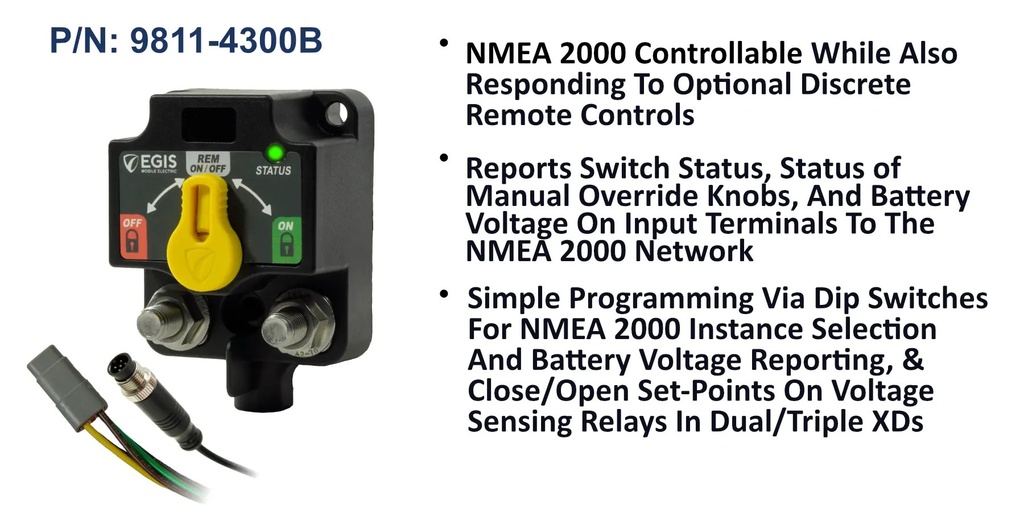

Egis XD NMEA 2000 Relays
Egis XD NMEA 2000 relays put battery switching and charge management on the boat network - control switches, monitor state and battery voltage from any NMEA 2000 display, or fall back to discrete inputs. Same sealed 500 A XD platform.
Key Features & Upfitter Specs
- Options On This Page: Single ACR and relay (Group A and B, 4P DT), dual ACR/ACR, ACR/Relay, Relay/ACR and Relay/Relay (8P DT), triple Relay/ACR/Relay and Relay x3 (12P DT), the 9815 lithium VSR and 36/48 V single and triple versions.
- Ratings: 500 A continuous / 1600 A cranking per switch; IP67 / IP6K9K; 90-95% less off-state current than competitive units.
- Expandable: Link and crossover busbars connect additional XD relays.
- Warranty: 4-year Egis warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Configuration | Single - NMEA 2000 (ACR) with Knobs - 4P DT Connector, Single - NMEA 2000 (Relay) with Knobs - 4P DT Connector, Single - NMEA 2000 (Relay) Group B with Knobs - 4P DT Connector, Dual - NMEA 2000 (ACR/ACR) with Knobs - 8P DT Connector, Dual - NMEA 2000 (ACR/Relay) with Knobs - 8P DT Connector, Dual - NMEA 2000 (ACR-No Knob/Relay-Knob) with Knobs - 8P DT Connector, Dual - NMEA 2000 (Relay/ACR) with Knobs - 8P DT Connector - Retail Pack, Dual - NMEA 2000 (Relay/ACR) with Knobs - 8P DT Connector, Dual - NMEA 2000 (Relay/Relay) with Knobs - 8P DT Connector, Triple - NMEA 2000 (Relay/ACR/Relay) with Knobs - 12P DT, Triple - NMEA 2000 (Relay/Relay/Relay) with Knobs - 12P DT |
| Manufacturer | Egis |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 11 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|
9811-4300B
|
Egis | Single - NMEA 2000 (ACR) with Knobs - 4P DT Connector | $ 143.99 | |
9811-4500B
|
Egis | Single - NMEA 2000 (Relay) with Knobs - 4P DT Connector | $ 122.99 | |
9812-4500B
|
Egis | Single - NMEA 2000 (Relay) Group B with Knobs - 4P DT Connector | $ 122.99 | |
9821-8330B
|
Egis | Dual - NMEA 2000 (ACR/ACR) with Knobs - 8P DT Connector | $ 215.99 | |
9821-8350B
|
Egis | Dual - NMEA 2000 (ACR/Relay) with Knobs - 8P DT Connector | $ 215.99 | |
9821-8450B
|
Egis | Dual - NMEA 2000 (ACR-No Knob/Relay-Knob) with Knobs - 8P DT Connector | $ 215.99 | |
9821-8530
|
Egis | Dual - NMEA 2000 (Relay/ACR) with Knobs - 8P DT Connector - Retail Pack | $ 214.99 | |
9821-8530B
|
Egis | Dual - NMEA 2000 (Relay/ACR) with Knobs - 8P DT Connector | $ 215.99 | |
9821-8550B
|
Egis | Dual - NMEA 2000 (Relay/Relay) with Knobs - 8P DT Connector | $ 215.99 | |
9831-2535B
|
Egis | Triple - NMEA 2000 (Relay/ACR/Relay) with Knobs - 12P DT | $ 302.99 | |
9831-2555B
|
Egis | Triple - NMEA 2000 (Relay/Relay/Relay) with Knobs - 12P DT | $ 302.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
