Egis MT Series Sealed Distribution Blocks
Reference:
3412B

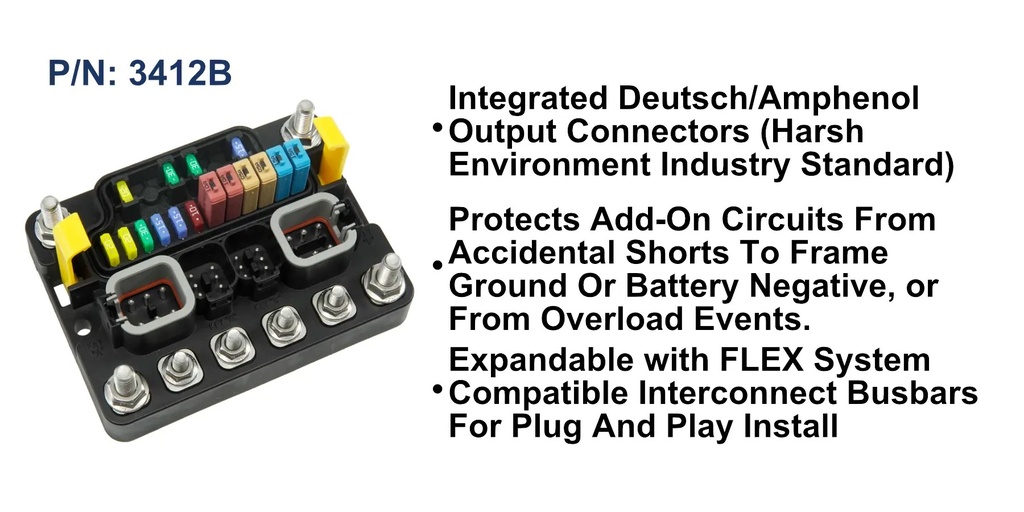

Egis MT Series Sealed Distribution Blocks
The Egis MT Series is the industry's first sealed, connectorized marine fuse and breaker block. Integrated Deutsch / Amphenol output connectors replace screw terminations, cutting assembly errors and corrosion failures on boats and vehicles.
Key Features & Upfitter Specs
- Options On This Page: 12 position blocks (standard, blue or green latches), 3+9, 6+6 and 9+3 split-feed blocks, and M8 ground bus versions - all with ground busbar.
- Ratings: 250 A total output, 250 A ground return bus, 30 A max fuse/breaker per circuit; IP66 / IP6K9K; ignition protected per SAE J1171.
- Expandable: Dual, triple and quad link busbars for plug-and-play switching and protection systems.
- Construction: Stainless steel cable lug studs, large 1/4-20 / M6 mounting holes, high temperature materials.
- Warranty: 5-year Egis warranty on MT Series.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Configuration | 12P Sealed Distribution Block with Ground Busbar, Blue Latches, 12P Sealed Distribution Block with Ground Busbar, Green Latches, 12P Sealed Distribution Block with Ground Busbar, 3+9 Sealed Dist Block - Blue Latches with Ground Busbar, 3+9 Sealed Dist Block with Ground Busbar, 6+6 Sealed Dist Block with Ground Busbar, 9+3 Sealed Dist Block with Ground Busbar, M8 Ground Bus,12P Sealed Distribution Block with Ground Busbar, M8 Ground Bus, 3+9 Sealed Dist Block with Ground Busbar, M8 Ground Bus, 6+6 Sealed Dist Block with Ground Busbar, M8 Ground Bus, 9+3 Sealed Dist Block with Ground Busbar |
| Manufacturer | Egis |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 11 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|
3412B
|
Egis | 12P Sealed Distribution Block with Ground Busbar | $ 81.99 | |
3413B
|
Egis | Blue Latches, 12P Sealed Distribution Block with Ground Busbar | $ 81.99 | |
3414B
|
Egis | Green Latches, 12P Sealed Distribution Block with Ground Busbar | $ 81.99 | |
3439-01B
|
Egis | 3+9 Sealed Dist Block - Blue Latches with Ground Busbar | $ 85.99 | |
3439B
|
Egis | 3+9 Sealed Dist Block with Ground Busbar | $ 85.99 | |
3466B
|
Egis | 6+6 Sealed Dist Block with Ground Busbar | $ 85.99 | |
3493B
|
Egis | 9+3 Sealed Dist Block with Ground Busbar | $ 85.99 | |
3512B
|
Egis | M8 Ground Bus,12P Sealed Distribution Block with Ground Busbar | $ 82.99 | |
3539B
|
Egis | M8 Ground Bus, 3+9 Sealed Dist Block with Ground Busbar | $ 85.99 | |
3566B
|
Egis | M8 Ground Bus, 6+6 Sealed Dist Block with Ground Busbar | $ 85.99 | |
3593B
|
Egis | M8 Ground Bus, 9+3 Sealed Dist Block with Ground Busbar | $ 85.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
