Egis C Series Toggle Circuit Breakers
Reference:
3501-010B

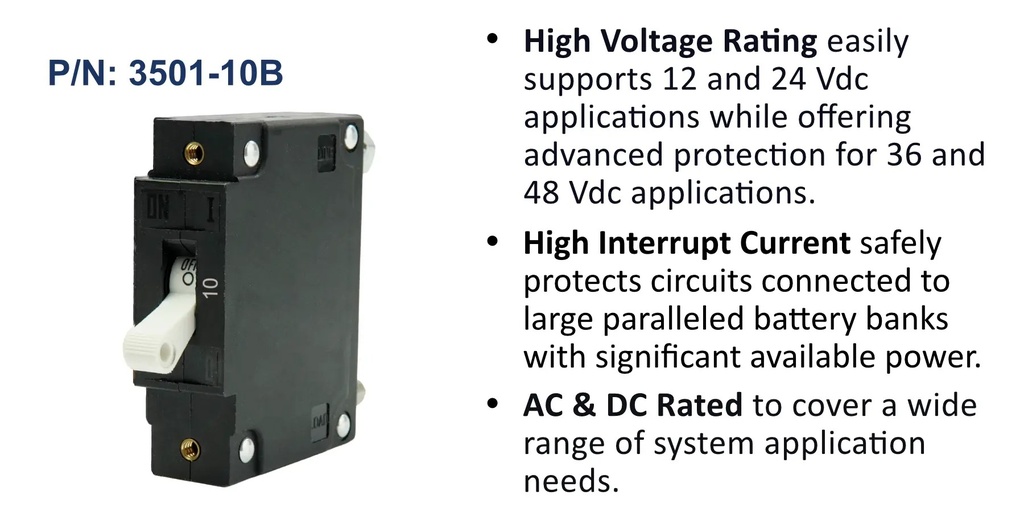

Egis C Series Toggle Circuit Breakers
Egis C Series magnetic-hydraulic circuit breakers bring higher amperage and voltage to the toggle format - up to 100 A single pole and 125 VDC. UL 1077 recognized, AC and DC rated, with stainless steel self-locking hardware for standard panel cutouts.
Key Features & Upfitter Specs
- Options On This Page: Single pole 10, 15, 20, 25, 50, 60 and 100 A, double pole 50 A and triple pole 50 A - all white toggle.
- Ratings: 277 VAC / 125 VDC max; 6,000 cycle endurance; 5 kA / 277 VAC and 2 kA / 125 VDC interrupt; CE marked.
- Visual Indication: Toggle position and ON/OFF marking show circuit state.
- Hardware: #6-32 mounting threads, stainless steel hardware, mounting screws included.
- Warranty: 4-year Egis warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Configuration | White Toggle, Single Pole, 10 A, White Toggle, Single Pole, 15 A, White Toggle, Single Pole, 20 A, White Toggle, Single Pole, 25 A, White Toggle, Single Pole, 50 A, White Toggle, Single Pole, 60 A, White Toggle, Single Pole, 100 A, White Toggle, Double Pole, 50 A, White Toggle, Triple Pole, 50 A |
| Manufacturer | Egis |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 9 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|
3501-010B
|
Egis | White Toggle, Single Pole, 10 A | $ 22.99 | |
3501-015B
|
Egis | White Toggle, Single Pole, 15 A | $ 22.99 | |
3501-020B
|
Egis | White Toggle, Single Pole, 20 A | $ 22.99 | |
3501-025B
|
Egis | White Toggle, Single Pole, 25 A | $ 22.99 | |
3501-050B
|
Egis | White Toggle, Single Pole, 50 A | $ 22.99 | |
3501-060B
|
Egis | White Toggle, Single Pole, 60 A | $ 22.99 | |
3501-100B
|
Egis | White Toggle, Single Pole, 100 A | $ 22.99 | |
3502-050B
|
Egis | White Toggle, Double Pole, 50 A | $ 45.99 | |
3503-050B
|
Egis | White Toggle, Triple Pole, 50 A | $ 69.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
