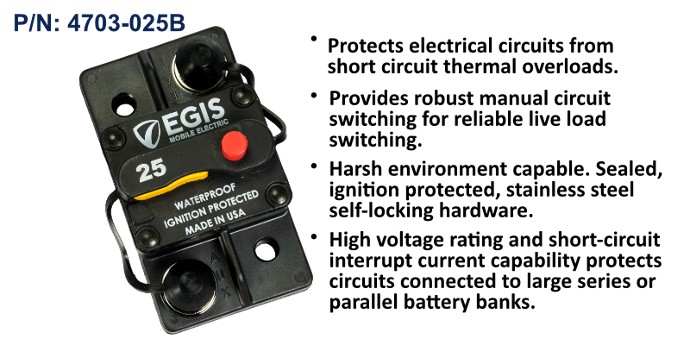

Egis 85 Series Surface Mount Circuit Breakers
Reference:
4703-025B
Egis 85 Series Surface Mount Circuit Breakers
Egis 85 Series surface mount breakers give you resettable high-amp protection and a manual disconnect in one sealed housing. Mount them next to the battery, in the engine bay or under the vehicle - IP67 sealed, 48 VDC rated and built with stainless self-locking hardware.
Key Features & Upfitter Specs
- Amperages On This Page: 25, 30, 40, 50, 60, 70, 80, 120 and 135 A (4703) plus 175, 200 and 250 A (4709). 100 and 150 A are listed separately under Egis Circuit Breaker.
- Ratings: 48 VDC max for 12/24 V systems with protection for 36/48 V; 3,000 A interrupt @ 14 VDC; IP67 sealed.
- Switching: High-visibility ON/OFF control for circuit isolation and maintenance without pulling fuses.
- Construction: Reinforced mounting tabs, stainless steel hardware and serrated flange nuts; made in the USA.
- Warranty: 4-year Egis warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Circuit Breaker Amps | 25 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A, 120 A, 135 A, 175 A, 200 A, 250 A |
| Manufacturer | Egis |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 12 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Circuit Breaker Amps | Price | Select |
|---|---|---|---|---|
4703-025B
|
Egis | 25 A | $ 20.99 | |
4703-030B
|
Egis | 30 A | $ 20.99 | |
4703-040B
|
Egis | 40 A | $ 20.99 | |
4703-050B
|
Egis | 50 A | $ 20.99 | |
4703-060B
|
Egis | 60 A | $ 20.99 | |
4703-070B
|
Egis | 70 A | $ 20.99 | |
4703-080B
|
Egis | 80 A | $ 20.99 | |
4703-120B
|
Egis | 120 A | $ 20.99 | |
4703-135B
|
Egis | 135 A | $ 20.99 | |
4709-175B
|
Egis | 175 A | $ 31.99 | |
4709-200B
|
Egis | 200 A | $ 31.99 | |
4709-250B
|
Egis | 250 A | $ 34.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
