Whelen Backup Alarm
Reference: No variant selected

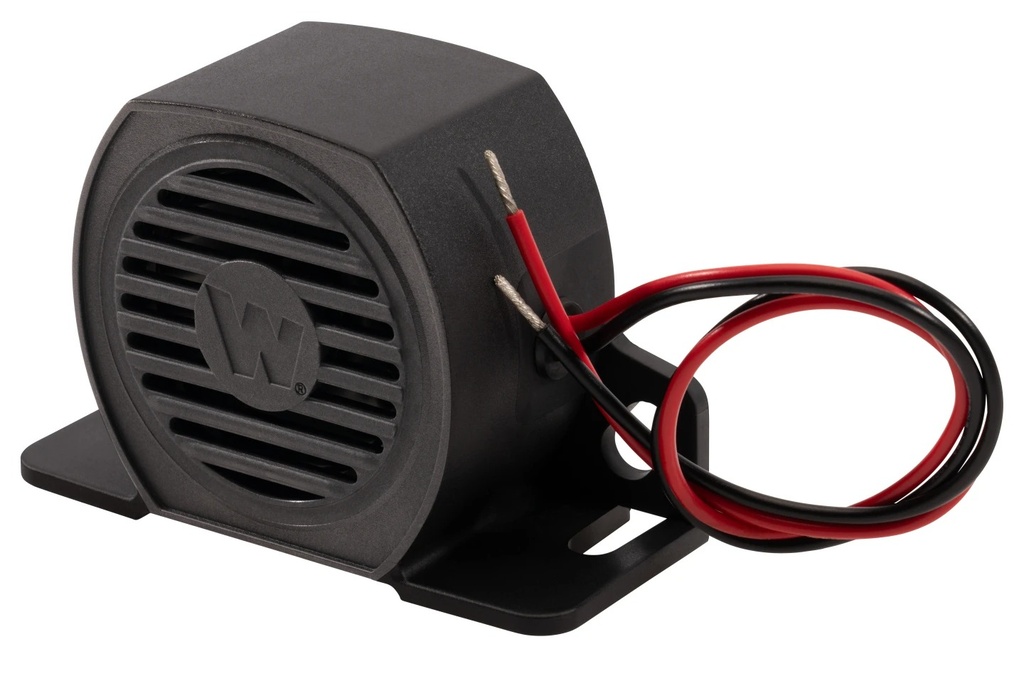

Whelen Self-Adjusting Backup Alarm
Protect ground crews without waking the whole neighborhood. Whelen's self-adjusting backup alarms continuously listen to ambient noise and automatically adjust their output 5-10 dB above it, so the warning always cuts through on a loud job site yet stays neighborly on a quiet overnight run. Fully encapsulated, solid-state electronics in a glass-filled nylon housing make these alarms steam-cleanable, pressure-washable, and ready for years of duty on plow trucks, spreaders, utility bodies, and heavy equipment.
Key Features & Upfitter Specs
- Self-Adjusting Output: Choose from four ranges — 77-97 dB, 77-102 dB, 82-107 dB, or 87-112 dB — and the alarm automatically tracks ambient noise so it is always loud enough to be heard, never louder than it needs to be.
- Durability: Fully encapsulated solid-state electronics in a rugged glass-filled nylon housing. Steam-cleanable and pressure-washable for salt spreaders, refuse trucks, and wash-bay fleets.
- Voltage: 12-24 VDC operation (the 82-107 dB model runs 12-48 VDC for electric and specialty chassis).
- Mounting & Wiring: Universal bracket mounts horizontally or vertically. Available with stud terminals or blunt-cut wire leads to match your harness plan.
- Compliance: SAE Class F certified and backed by Whelen's 2 year warranty. Made in America.
Choosing Your Options
- Alarm Volume: 77-97 dB (P/N BU7797) suits general fleet and municipal trucks. 77-102 dB (BU77102) adds headroom for street sweepers and refuse. 82-107 dB (BU82107) covers high-noise construction sites and 12-48 VDC equipment. 87-112 dB (BU87112) is the choice for mining, quarry, and the loudest environments.
- Wiring: Stud Terminals give a serviceable, ring-terminal connection upfitters prefer on equipment that gets rewired. Wire Leads (the "L" models) splice straight into the reverse-lamp circuit for the fastest install.
Pair any of these alarms with the Whelen Backup Alarm Switch (BUSW1) when the application calls for operator control.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Alarm Volume | 77-97 dB, 77-102 dB, 82-107 dB, 87-112 dB |
| Wiring | Wire Leads, Stud Terminals |
| Manufacturer | Whelen Engineering |
