Whelen 500 V-Series
Whelen 500 V-Series

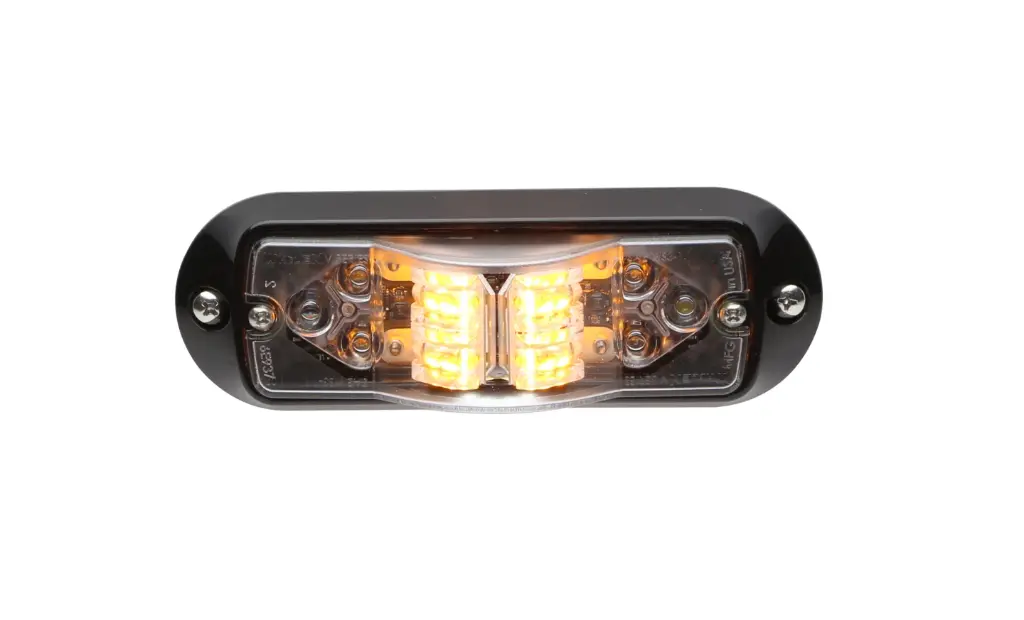

Consolidate your exterior lighting with the ultimate 3-in-1 tactical lighthead: the Whelen 500 V-Series Super-LED. Traditionally, outfitting a patrol vehicle required mounting separate modules for warning lights, alley take-downs, and ground illumination, cluttering the exterior and creating a wiring nightmare. The 500 V-Series replaces them all. Utilizing High Definition Optics (HDO), this single compact unit projects a massive 180-degree warning signal, a blinding white flood/alley light, and a downward-facing puddle light, giving officers total perimeter control from a single mounting point.
Key Features & Upfitter Specs
- 3-in-1 Functionality: Combines a 180-degree wide-angle warning light, a high-intensity white flood/alley light, and a downward-facing white puddle light into one compact, individually controllable housing.
- HDO Technology: Features Whelen's High Definition Optics, ensuring the warning signal meets rigorous SAE J845 Class I requirements for maximum off-axis visibility at dangerous intersections.
- Independent Control: Built with self-contained SmartLED electronics, allowing fleet technicians to wire the warning, flood, and puddle lights to separate switches on the center console.
- Severe-Duty Encapsulation: The internal circuitry is fully encapsulated in epoxy, rendering the entire lighthead impervious to moisture, winter road chemicals, and extreme vibration.
- Hard-Coated Lenses: Equipped with premium hard-coated polycarbonate lenses that drastically resist UV degradation, sand pitting, and scratching from aggressive fleet washing.
Specifications
| Light Color | Amber, White, Blue, Red |
| Mounting Location | Front - In / On The Grille, Front - Bumper Light Channel, Front - PIT Bars, Side - Front Push Bumper, Side - Wheel Well Arch, Side - Rear Door Windows, Side - Cargo Windows (Interior), Rear - Lower Rear/Hatch Window (Interior), Rear - License Plate, Rear - Liftgate Interior Panel (AUX Dome/Cargo), Rear - Liftgate Downward Facing (Rear Warning When Open), Rear - On The Tailgate, Rear - Rear Bumper (Rear Facing), Other |
| Manufacturer | Whelen Engineering |
| Perimeter Light Control | Standard (5-Wire) |
| Perimeter Light Mount | Screw Mount |
| Light Lens | Clear |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 4 part numbers
| Part Number | Manufacturer | Perimeter Light Control | Light Color | Perimeter Light Mount | Light Lens | Price | Select |
|---|---|---|---|---|---|---|---|
5V3A
|
Whelen Engineering | Standard (5-Wire) | Amber | Screw Mount | Clear | $ 232.99 | |
5V3C
|
Whelen Engineering | Standard (5-Wire) | White | Screw Mount | Clear | $ 232.99 | |
5V3B
|
Whelen Engineering | Standard (5-Wire) | Blue | Screw Mount | Clear | $ 232.99 | |
5V3R
|
Whelen Engineering | Standard (5-Wire) | Red | Screw Mount | Clear | $ 232.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
