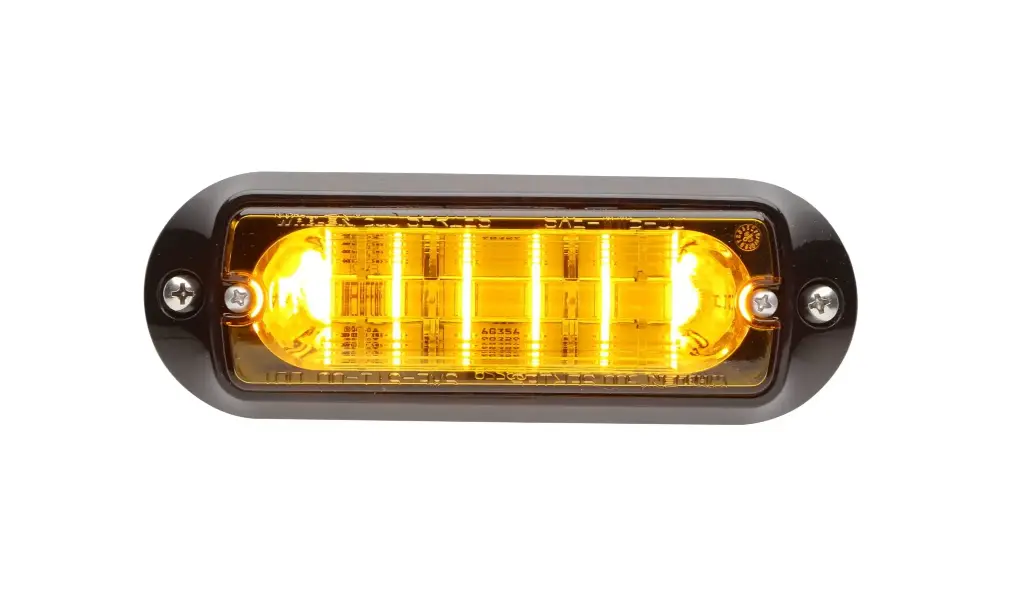

Whelen 500 Series
Reference: No variant selected
Whelen 500 Series
Command intersection visibility and protect your fleet with the legendary Whelen 500 Series Linear Super-LED lighthead. Professional upfitters require warning lights that deliver blinding output while surviving the absolute worst environmental conditions. The Whelen 500 Series is the industry standard for compact surface mounting. Utilizing advanced Linear Super-LED optics, it projects a massive, wide-angle wall of light, ensuring your vehicle is seen from multiple lanes away. Fully encapsulated against moisture and vibration, it is the ultimate warning solution for grilles, push bumpers, and utility bodies.
Key Features & Upfitter Specs
- Linear Super-LED Optics: Engineered with precision linear reflectors that capture and project light in a massive horizontal spread, maximizing off-axis visibility at critical intersections.
- Self-Contained SmartLED: Features an integrated flasher with no external power supply required, significantly streamlining the wiring process for fleet technicians.
- Scan-Lock Flash Patterns: Includes 25 selectable flash patterns (69 for split-color models) with built-in synchronization capabilities to network up to eight lightheads simultaneously.
- Severe-Duty Construction: The entire electronic assembly is epoxy-encapsulated, rendering the lighthead completely impervious to moisture, road salt, and intense vehicular vibration.
- Hard-Coated Lenses: Features Whelen's proprietary hard-coated polycarbonate lenses, drastically reducing degradation from UV sunlight, sand pitting, and aggressive chemical washes.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Light Color | Amber, Blue, Green, Red, White, Amber/White, Blue/White, Red/White |
| Mounting Location | Front - In / On The Grille, Front - Bumper Light Channel, Front - PIT Bars, Side - Front Push Bumper, Side - Wheel Well Arch, Side - Rear Door Windows, Side - Cargo Windows (Interior), Rear - Lower Rear/Hatch Window (Interior), Rear - License Plate, Rear - Liftgate Interior Panel (AUX Dome/Cargo), Rear - Liftgate Downward Facing (Rear Warning When Open), Rear - On The Tailgate, Rear - Rear Bumper (Rear Facing), Other |
| Manufacturer | Whelen Engineering |
| Perimeter Light Control | Standard (5-Wire) |
| Perimeter Light Mount | Screw Mount |
| Light Lens | Clear |
