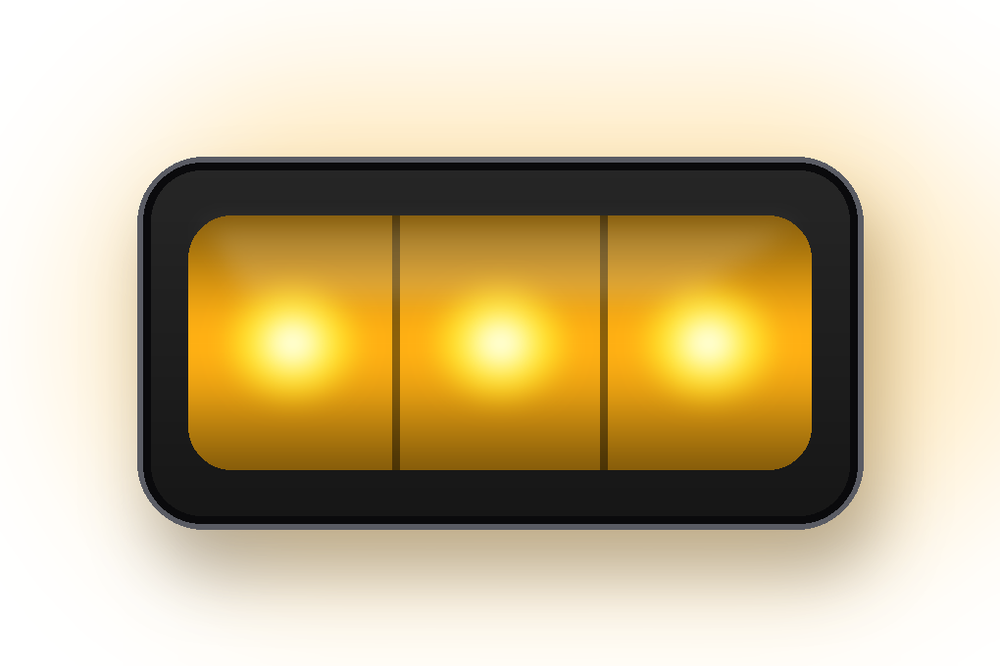

FedSig MicroPulse Ultra 3
The smallest member of the MicroPulse Ultra family, the Federal Signal MicroPulse Ultra 3 packs full-size warning power into a 3-LED housing small enough to hide almost anywhere on the vehicle. Perfect for tight grille slats, license plate areas, taillight brackets, and mirror mounts, the Ultra 3 delivers the same intense Solaris-derived output and synchronization capability as its larger siblings while staying virtually invisible until activated. The fully encapsulated, waterproof housing shrugs off pressure washing, road salt, and winter slush.
Key Features & Upfitter Specs
- Optics: (3) high-output LEDs in single-color models or (6) LEDs in dual-color models, meeting CCR Title 13 requirements.
- Colors: Single-color Amber, Blue, Green, Red, or White; dual-color combinations including Red/Blue, Red/White, Blue/White, Amber/White, and more. Smoked lens options available on select dual-color models.
- Flash Patterns: (25) selectable flash patterns with built-in synchronization across MicroPulse heads.
- Durability: Fully encapsulated IP67 waterproof housing with integrated waterproof connector on every model.
- Mounting: Surface mounts with the standard black bezel; optional chrome (MPSUMB3-1) or white (MPSUMB3-2) bezels and a wide range of vehicle-specific brackets available.
- Electrical: Multi-voltage 12/24 Vdc operation for cars, trucks, and heavy equipment.
- Warranty: Five-year Federal Signal warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Light Color | Amber, Blue, Green, Red, White, Amber/White, Blue/Amber, Blue/White, Green/Amber, Red/Amber, Red/Blue, Red/White |
| Light Lens | Clear, Smoke |
| Mounting Location | Front - In / On The Grille, Front - Bumper Light Channel, Front - PIT Bars, 360° - Under Mirror Mount, Side - Front Push Bumper, Side - Wheel Well Arch, Side - Rear Door Windows, Side - Cargo Windows (Interior), Rear - Lower Rear/Hatch Window (Interior), Rear - License Plate, Rear - Liftgate Interior Panel (AUX Dome/Cargo), Rear - Liftgate Downward Facing (Rear Warning When Open), Rear - On The Tailgate, Rear - Rear Bumper (Rear Facing), Other |
| Manufacturer | Federal Signal |
| Perimeter Light Mount | Screw Mount |
| Perimeter Light Control | Standard (5-Wire) |
