Boss Plow Pins, Springs, Bushings & Hinge Parts
Reference:
HDW05203
Boss Plow Pins, Springs, Bushings & Hinge Parts
Wear items that keep a BOSS plow pivoting and tripping the way it did new. Center hinge pins are listed for RTII 7'6" V, RTII/RT3 V, RT3 (S/N 107389+), DXT, 10' V and 10' DXT and TEV plows, with horizontal hinge threaded pin kits, RT3, HD V-plow and sport-duty pivot pin kits and the DXT inner, outer and 10' trip-edge pivot pin kits. Springs include the 14-1/2" trip/return spring, tap-end and heavy-duty DXT trip springs, spring pin replacement kit, .362 OD spring kit and the 2.5" compression spring, plus trip spring yokes for RTII V, RT3 V, 10' V and 10' DXT. The group also carries clevis, roll, quick and hitch pins, flange and slider bushings, the shoe spacer, bolt plate/shim, RTII turnbuckle, shock absorber and fastener kit, EXT bushing retainer, TEV cast link and upper/lower link clevis kits and the lift cylinder clevis pin kit.
Key Features & Upfitter Specs
- Hinge & Pivot Pins: Center hinge pins for RTII, RT3, DXT, TEV and 10' V-plows, horizontal hinge threaded pin kits and pivot pin kits (RT3, HD V, sport-duty, DXT trip edge).
- Springs & Yokes: Trip/return springs, compression and extension springs, spring kits and trip spring yokes for RTII V, RT3 V, 10' V and 10' DXT.
- Bushings, Pins & Links: Clevis, roll, quick and hitch pins, flange and plastic slider bushings, spacers, turnbuckle, shock absorber, cast link and TEV clevis kits.
- Genuine BOSS: Factory-original service parts, so fit, finish and material match what came on the equipment.
- Warranty: Covered by the 1-year BOSS parts and accessories warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Part | 1" x 2 1/2" Clevis Pin, 1-1/2" Long Shoe Spacer, 1/2" x 3" Roll Pin, 3/16" Quick Pin, 3/16" x 2" Roll Pin, 362"OD x 2.5"LG Spring Kit (set of 2), 5/8" x 3" Clevis Pin, 7/16" Quick Pin, Bushing 1 OD x 3/4 ID x 15/16, Bushing, Flange, 0.5 ID, 0.594 OD, Bushing, Flange, 0.75 ID, 0.875 OD, Bushing-flange (.255 ID X .375 OD, NY), Cast Link TEV, Center Hinge Pin 10' V-Plow, Center Hinge Pin RTII/RT3 V, Center Hinge Pin, 10' DXT, Clevis Pin (3/4X3, Zinc), EXT Bushing Retainer, Heavy Duty Trip/Return Spring, Hitch PIN Kit, 1/2OD with hair PIN, Kit Pin Lower Link Clevis TEV, Kit Spring Sleeve Power/Ground CFT, Kit Upper link Clevis TEV, Pin-pivot (.50 X 18, Stainless), Pin-roll, 3/16 X 1-5/8, Pivot Pin Kit, HD V-Plow, Pivot Pin Kit, RT3, Pivot Pin Kit, Sport Duty, Pivot Trip Edge Pin Kit, 10' DXT-V, Plastic Slider Bushing, EXT, Plate, Bolt, Bumper, RT3 V, RT3 10' V, Horizontal Hinge Threaded Pin Kit, RT3 Center Hinge Pin, DXT, RT3 Center Hinge Pin, S/N #107389+, RT3 V-Plow Horizontal Hinge Threaded Pin Kit, RTII 7'6 V-Plow Center Hinge Pin, RTII Horizontal Hinge Pin Kit with Cotter & Roll Pins, RTII V-Plow Turnbuckle, Shock Absorber, Shock Absorber Option Fastener Kit, Shoulder Pivot Bolt, Spacer, 5/8IDX7/8ODX1 (BLACK), Spring Pin Replacement Kit, Spring-comp, 2.5" OD X 4.5", Spring-trip/return, Tap-ends (17.63), Trip Edge Inner Pivot Pin Kit, DXT V-Plow, Trip Edge Outer Pivot Pin Kit, DXT V-Plow, Trip Spring Yoke, 10' DXT-V, RT3, Trip Spring Yoke, RT3 V, Trip/ Return Spring 14 1/2", V Blade Hinge Pin Lower Left Yoke, Vertical Hinge Pin RT3 TEV, Yoke, Trip Spring RT3 V 10', Yoke, Trip Spring Rtii V |
| Manufacturer | Toro Co. |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 54 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Part | Price | Select |
|---|---|---|---|---|
HDW05203
|

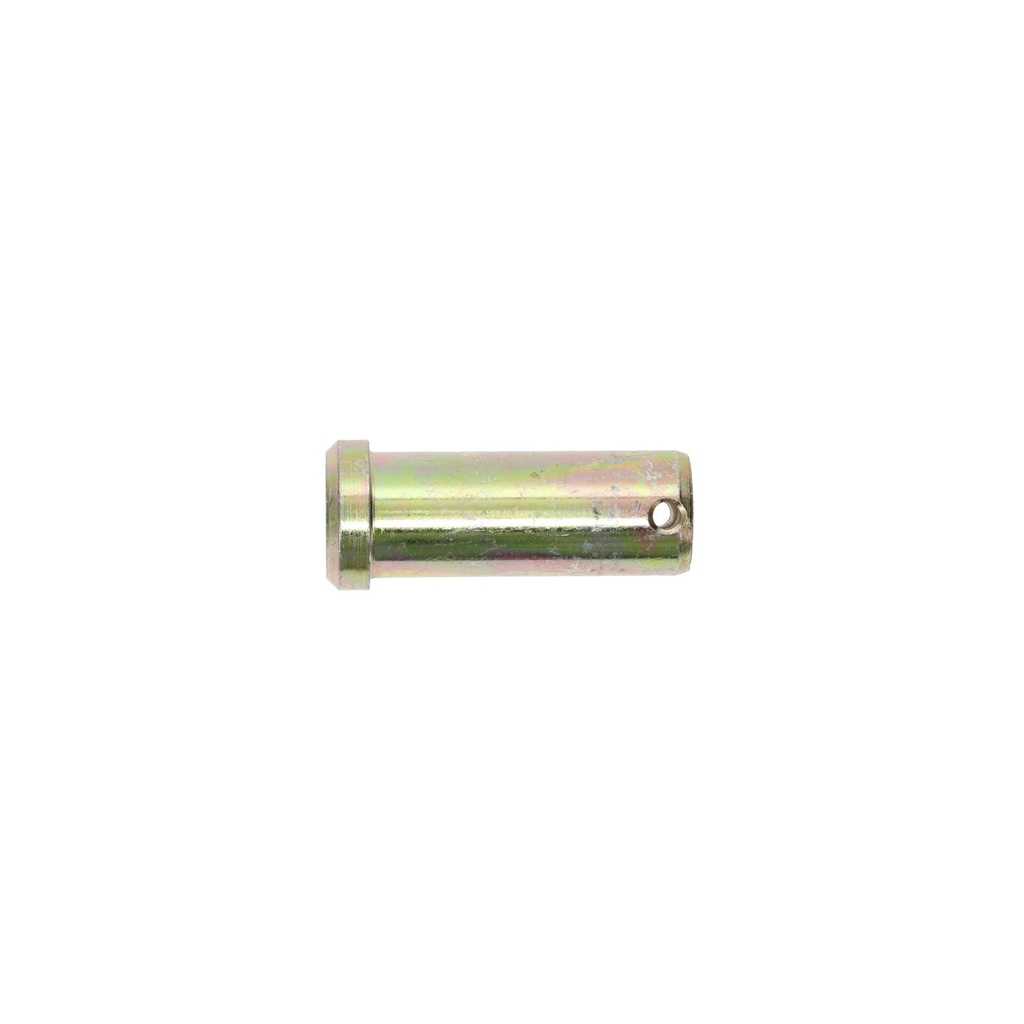

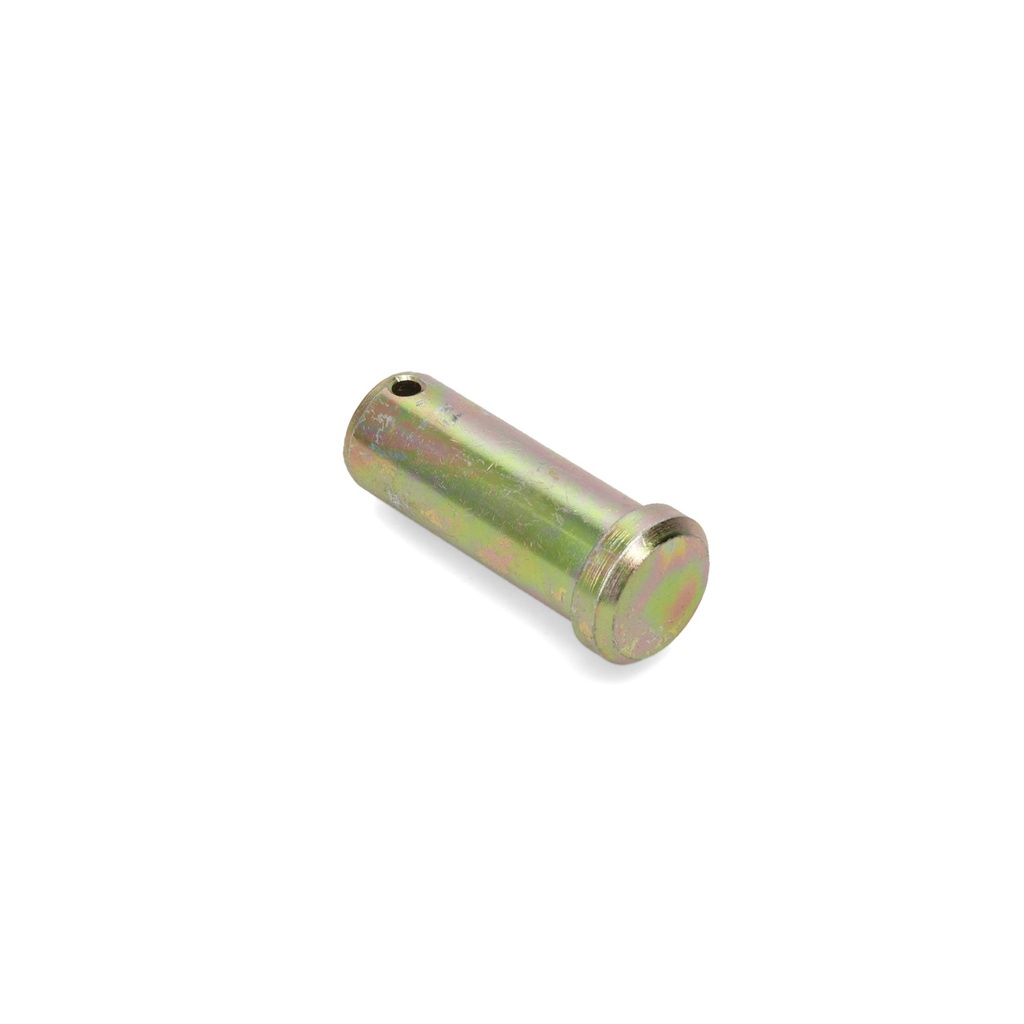

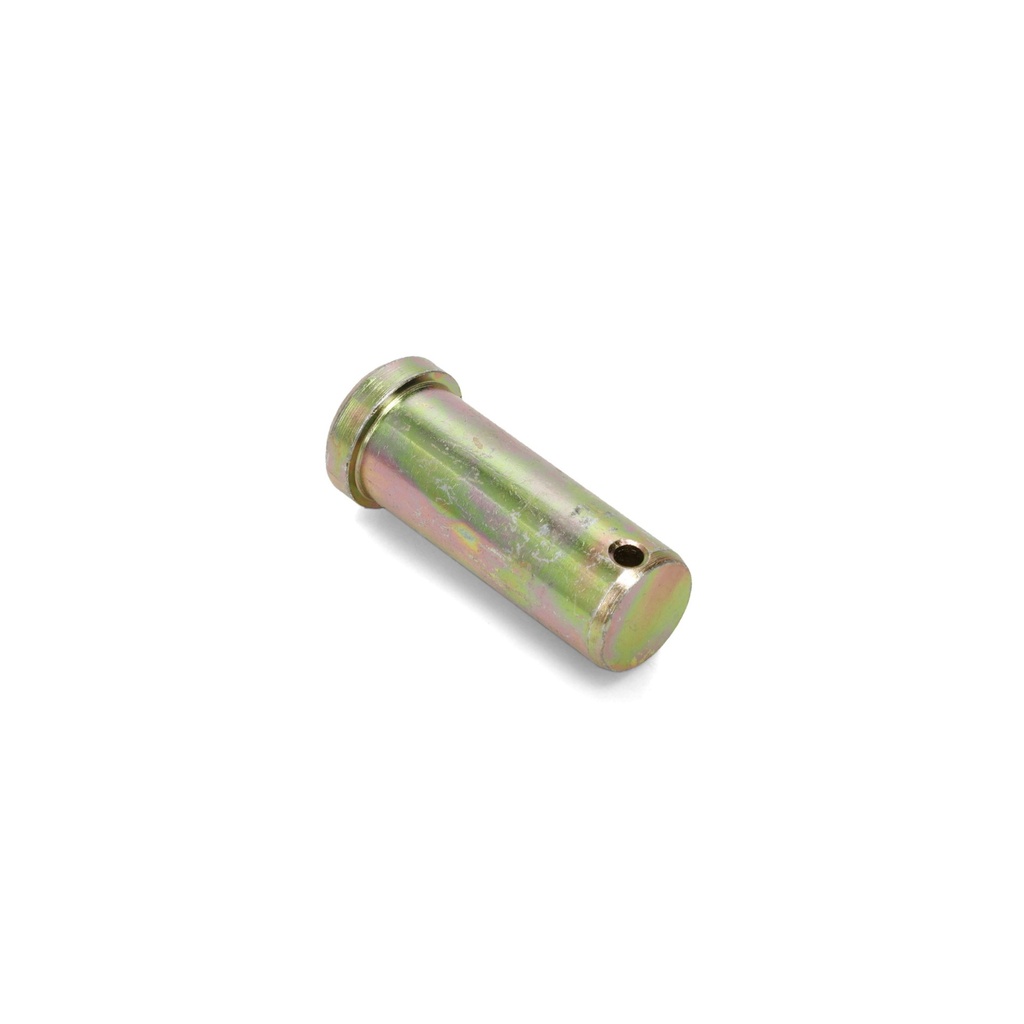

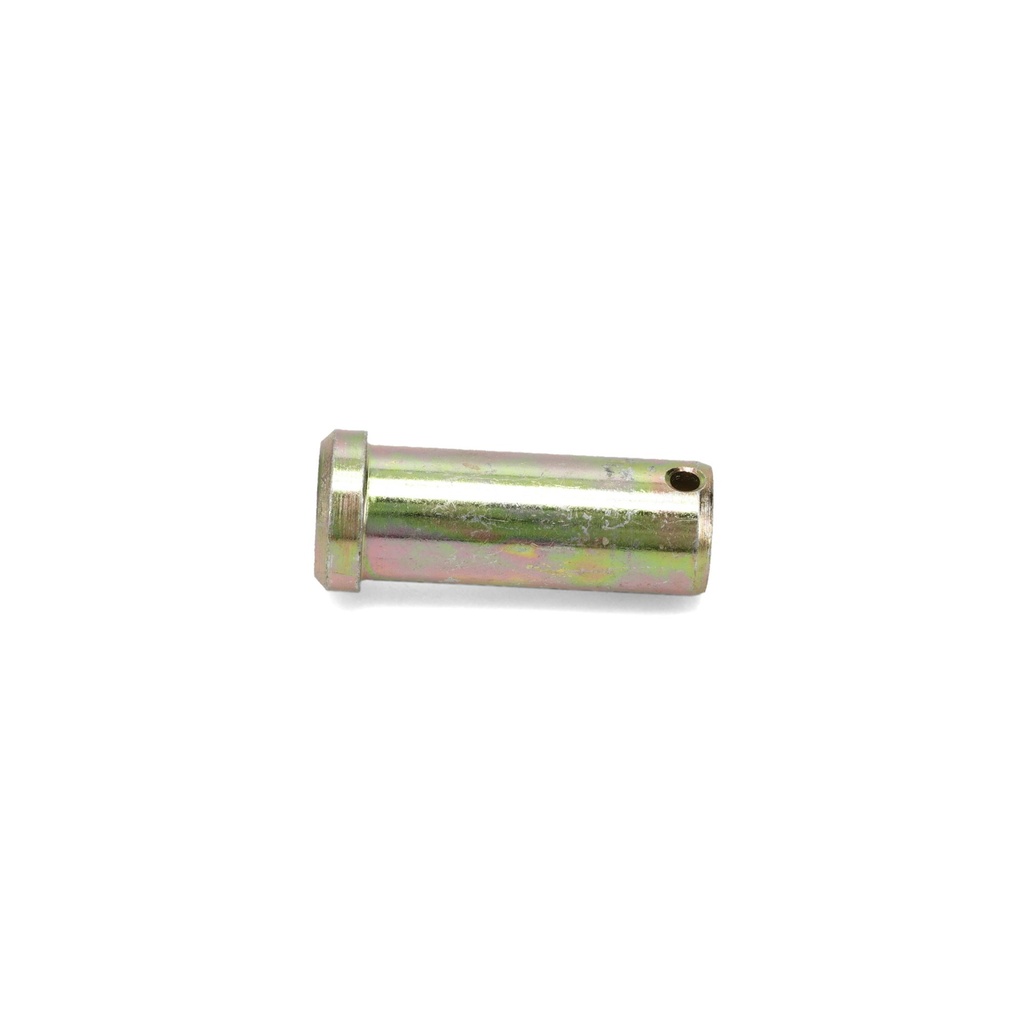

Toro Co. | 1" x 2 1/2" Clevis Pin | $ 5.99 | |
MSC01813-03
|
Toro Co. | 1-1/2" Long Shoe Spacer | $ 8.99 | |
HDW07394
|
Toro Co. | 1/2" x 3" Roll Pin | $ 4.99 | |
MSC13127
|
Toro Co. | 3/16" Quick Pin | $ 1.99 | |
HDW05876
|
Toro Co. | 3/16" x 2" Roll Pin | $ 0.99 | |
MSC05080
|
Toro Co. | 362"OD x 2.5"LG Spring Kit (set of 2) | $ 5.99 | |
HDW05614
|
Toro Co. | 5/8" x 3" Clevis Pin | $ 5.99 | |
MSC01503
|
Toro Co. | 7/16" Quick Pin | $ 1.99 | |
VHD08998
|
Toro Co. | Bushing 1 OD x 3/4 ID x 15/16 | $ 17.99 | |
MSC23073
|
Toro Co. | Bushing, Flange, 0.5 ID, 0.594 OD | $ 2.99 | |
MSC23072
|
Toro Co. | Bushing, Flange, 0.75 ID, 0.875 OD | $ 3.99 | |
MSC26038
|
Toro Co. | Bushing-flange (.255 ID X .375 OD, NY) | $ 0.99 | |
MSC26997-03
|
Toro Co. | Cast Link TEV | $ 73.99 | |
MSC07637
|
Toro Co. | Center Hinge Pin 10' V-Plow | $ 266.99 | |
MSC01507
|
Toro Co. | Center Hinge Pin RTII/RT3 V | $ 73.99 | |
MSC17545
|
Toro Co. | Center Hinge Pin, 10' DXT | $ 257.99 | |
HDW05621
|
Toro Co. | Clevis Pin (3/4X3, Zinc) | $ 5.99 | |
STB19266-01
|
Toro Co. | EXT Bushing Retainer | $ 6.99 | |
MSC17569
|
Toro Co. | Heavy Duty Trip/Return Spring | $ 64.99 | |
MSC11331
|
Toro Co. | Hitch PIN Kit, 1/2OD with hair PIN | $ 4.99 | |
MSC23868
|
Toro Co. | Kit Pin Lower Link Clevis TEV | $ 25.99 | |
MSC25638
|
Toro Co. | Kit Spring Sleeve Power/Ground CFT | $ 9.99 | |
MSC23867
|
Toro Co. | Kit Upper link Clevis TEV | $ 18.99 | |
MSC27469
|
Toro Co. | Pin-pivot (.50 X 18, Stainless) | $ 28.99 | |
HDW13648
|
Toro Co. | Pin-roll, 3/16 X 1-5/8 | $ 0.99 | |
MSC07697
|
Toro Co. | Pivot Pin Kit, HD V-Plow | $ 46.99 | |
MSC04251
|
Toro Co. | Pivot Pin Kit, RT3 | $ 21.99 | |
MSC09586
|
Toro Co. | Pivot Pin Kit, Sport Duty | $ 22.99 | |
MSC17604
|
Toro Co. | Pivot Trip Edge Pin Kit, 10' DXT-V | $ 94.99 | |
MSC19265
|
Toro Co. | Plastic Slider Bushing, EXT | $ 29.99 | |
MSC04860-03
|
Toro Co. | Plate, Bolt, Bumper, RT3 V | $ 3.99 | |
MSC09664
|
Toro Co. | RT3 10' V, Horizontal Hinge Threaded Pin Kit | $ 61.99 | |
MSC18100
|
Toro Co. | RT3 Center Hinge Pin, DXT | $ 96.99 | |
MSC11050
|
Toro Co. | RT3 Center Hinge Pin, S/N #107389+ | $ 67.99 | |
MSC09649
|
Toro Co. | RT3 V-Plow Horizontal Hinge Threaded Pin Kit | $ 43.99 | |
MSC01550
|
Toro Co. | RTII 7'6 V-Plow Center Hinge Pin | $ 170.99 | |
MSC03464
|
Toro Co. | RTII Horizontal Hinge Pin Kit with Cotter & Roll Pins | $ 65.99 | |
MSC01510
|
Toro Co. | RTII V-Plow Turnbuckle | $ 123.99 | |
MSC01517
|
Toro Co. | Shock Absorber | $ 85.99 | |
HDW05609
|
Toro Co. | Shock Absorber Option Fastener Kit | $ 13.99 | |
HDW13947
|
Toro Co. | Shoulder Pivot Bolt | $ 25.99 | |
LTA12694-03
|
Toro Co. | Spacer, 5/8IDX7/8ODX1 (BLACK) | $ 23.99 | |
MSC04286
|
Toro Co. | Spring Pin Replacement Kit | $ 29.99 | |
MSC22497
|
Toro Co. | Spring-comp, 2.5" OD X 4.5" | $ 26.99 | |
MSC07705
|
Toro Co. | Spring-trip/return, Tap-ends (17.63) | $ 57.99 | |
MSC18107
|
Toro Co. | Trip Edge Inner Pivot Pin Kit, DXT V-Plow | $ 125.99 | |
MSC18106
|
Toro Co. | Trip Edge Outer Pivot Pin Kit, DXT V-Plow | $ 63.99 | |
MSC17556-03
|
Toro Co. | Trip Spring Yoke, 10' DXT-V, RT3 | $ 46.99 | |
MSC04200-03
|
Toro Co. | Trip Spring Yoke, RT3 V | $ 37.99 | |
MSC01509
|
Toro Co. | Trip/ Return Spring 14 1/2" | $ 32.99 | |
BAX00090
|
Toro Co. | V Blade Hinge Pin Lower Left Yoke | $ 17.99 | |
MSC26848
|
Toro Co. | Vertical Hinge Pin RT3 TEV | $ 74.99 | |
MSC07679-03
|
Toro Co. | Yoke, Trip Spring RT3 V 10' | $ 75.99 | |
MSC03422
|
Toro Co. | Yoke, Trip Spring Rtii V | $ 26.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
