Boss Hydraulic Hoses & Hose Wraps
Reference:
MSC13892
Boss Hydraulic Hoses & Hose Wraps
Factory-length hydraulic hose assemblies for BOSS plows, each built with the exact end fittings the valve and cylinder ports call for so nothing has to be adapted in the field. The list spans 1/4" hoses from 10-1/4" to 73-1/2" with 1/4 MP, 3/8 MOR and JIC ends, 3/8" hoses from 14" to 92-1/2" with MP, MOR and FJIC ends, and the 1/2" and 5/8" sleeved hose assemblies used on wing and downforce circuits. Hose wraps in 31", 36" and 37" lengths protect bundles at the coupler, and single, double and twin hose clamps plus the zerk-bulkhead grease hose complete the group.
Key Features & Upfitter Specs
- Hose Assemblies: 1/4", 3/8", 1/2" and 5/8" hydraulic hoses in factory lengths with MP, MNPT, MOR, FJIC, 90-degree and swivel ends as specified by BOSS.
- Hose Wraps & Clamps: 1.2" ID black hose wraps (31", 36", 37"), 3/4" and 1/2" hose clamps, EPDM-lined double clamp and twin clamps.
- Identify by Length & Ends: Each option lists hose diameter, length and end fittings; match to the hose being replaced.
- Genuine BOSS: Factory-original service parts, so fit, finish and material match what came on the equipment.
- Warranty: Covered by the 1-year BOSS parts and accessories warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Part | 1/2" Double Hose Clamp, EDPM Lined, 3/8" x 27" Hose, 3/8" MOR 90* Swivel x 3/8 MNPT, 3/8" x 78" Hose, 3/8" FJIC x 1/2" MNPT, 3/8FJIC x 3/8FJIC90 x 50 Hydraulic Hose, Black Hose Wrap, 1.2" ID x 31", Black Hose Wrap, 1.2" ID x 37", Clamp, Hose, 1/2"-29/32" Dia, Hose Assembly, 1/2 X 8.5, -08 Fjic, -10FJIC, Hose Assembly, 1/2"X14 with sleeve, -08FJIC, -10FJ, Hose Assembly, 1/2"X14.5 with sleeve, -08FJIC90, Hose Assembly, 5/8" x 72.0 with Sleeve, -10FJIC, -10, Hose Assembly, 5/8" x 79.0 with Sleeve, -10FJIC, -10, Hose Assembly-grease with Zerk Bulkhead, Hose Clamp, 3/4" Hose, 1/4" Mtg Hole, Hose Wrap, 36", Hose, 1/2 FORF 90 Short x 3/8 FJIC x 38, Hose, 1/4'' X 43'', 1/4''MNPT X 1/4''MNPT, Hose, 3/8" X 23 1/2", 1/4"MP X 3/8"MOR, Hose, 3/8" X 32", 1/4"MP X 1/4"MP, Hose, 3/8" X 37", 1/4"MP X 1/4"MP, Hose, 3/8" X 92.5", 1/4"MP X 3/8"MOR, Hose, 3/8"X14", 3/8"FJIC X 3/8"MOR, Hose, 3/8"X25", 3/8"FJIC X 3/8"MOR, Hose, 3/8"X52", 3/8"FJIC X 3/8"MOR, Hose, 3/8"X60", 3/8"FJIC X 3/8"MOR, Hose, 3/8"X66", 3/8"FJIC X 3/8"MOR, Hose, 3/8"X78, 3/8"FJIC X 3/8"MOR, Hose, 3/8X42, 1/4MPX3/8MP, Hose, 3/8X44, 3/8MOR90LVSWVLX3/8, Hydraulic Hose 1/4" x 14", 06MORB x 1/4MNPT, Hydraulic Hose 1/4" x 15", 3/8MOR x 1/4MP, Hydraulic Hose 1/4" x 15-1/2", 1/4MP x 1/4MP, Hydraulic Hose 1/4" x 18", 1/4MP x 1/4MP, Hydraulic Hose 1/4" x 18", 3/8MOR x 1/4MP, Hydraulic Hose 3/8" x 34", 3/8MP x 1/4MP, Hydraulic Hose 3/8" x 40", 1/4 MP x 3/8MOR, Hydraulic Hose 3/8" x 48", 3/8MP x 1/4MP, Hydraulic Hose, 1/4 FJIC x 3/8 JIC90 x 37, Hydraulic Hose, 1/4" x 10 1/4", 1/4" MNPT x 1/4" MNPT, Hydraulic Hose, 1/4" x 49", 1/4 MNPT x 1/4" MNPT, Hydraulic Hose, 3/8 x 40,3/8 MP x 1/4 MP, Hydraulic Hose, 3/8 x 59-1/2, 1/4MP x 1/4MP, Hydraulic Hose, 3/8 x 73-1/2, 1/4 MP x 1/4 MP |
| Manufacturer | Toro Co. |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 43 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Part | Price | Select |
|---|---|---|---|---|
MSC13892
|

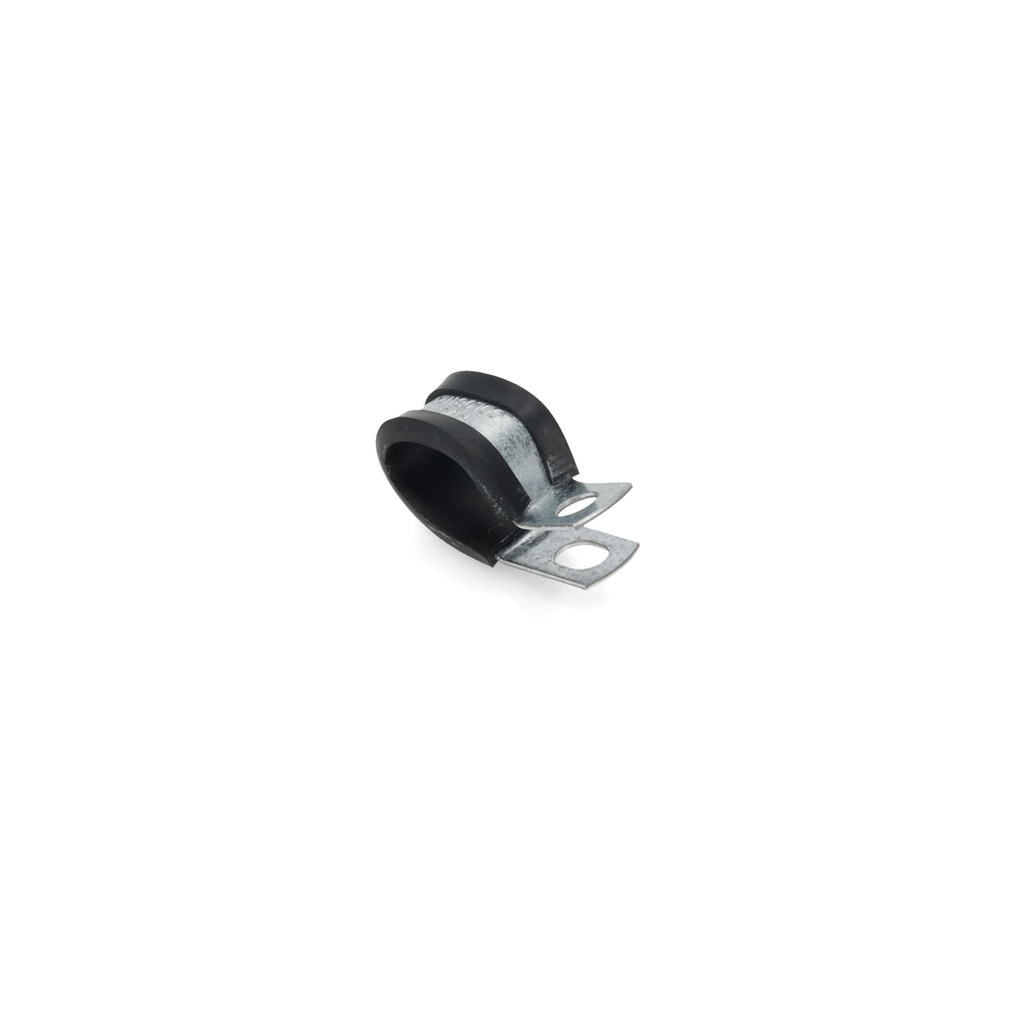

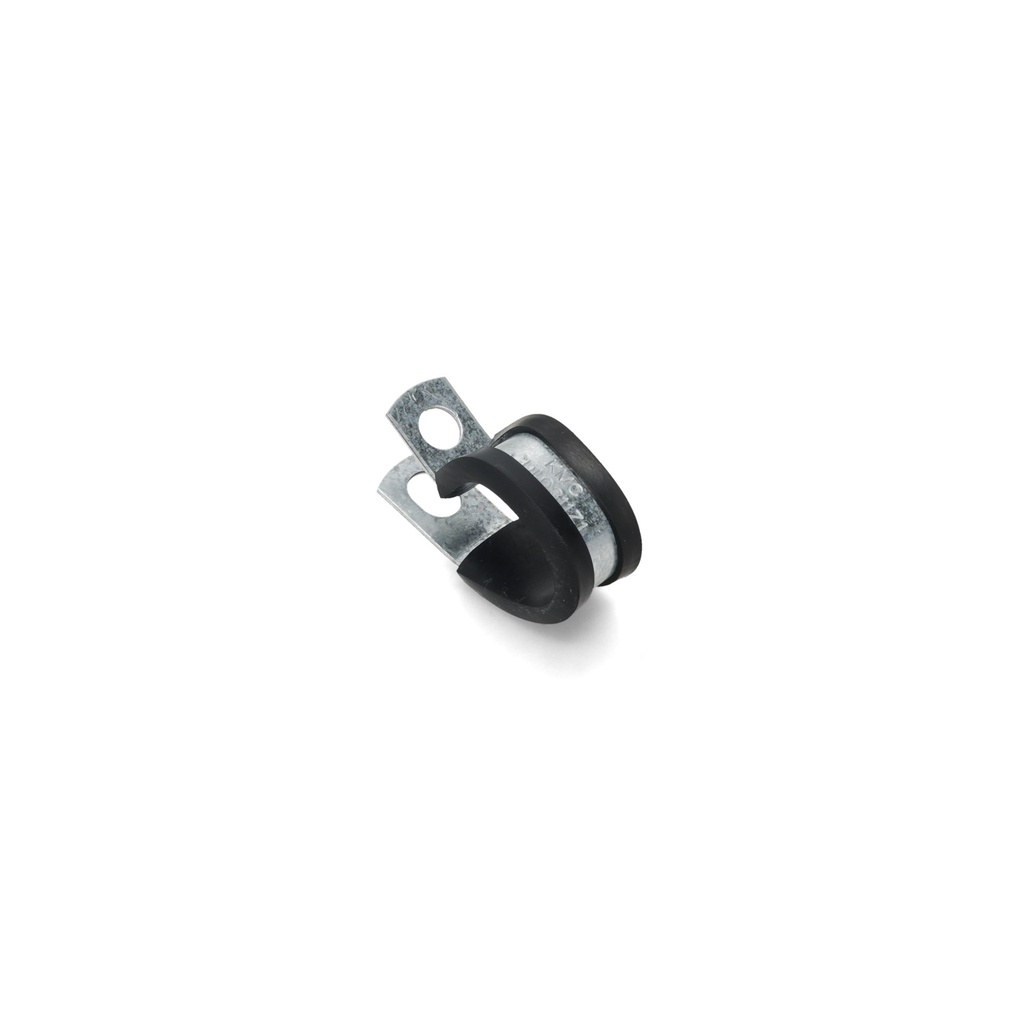

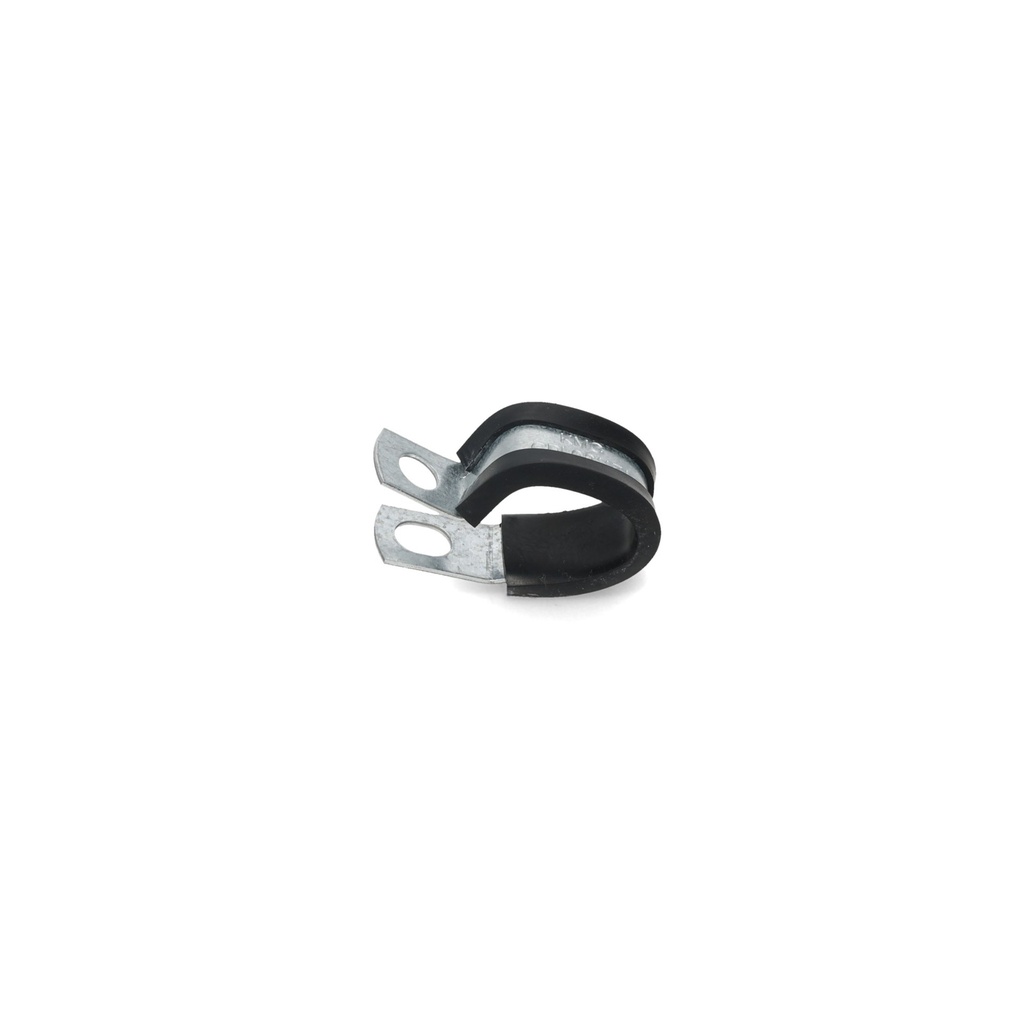

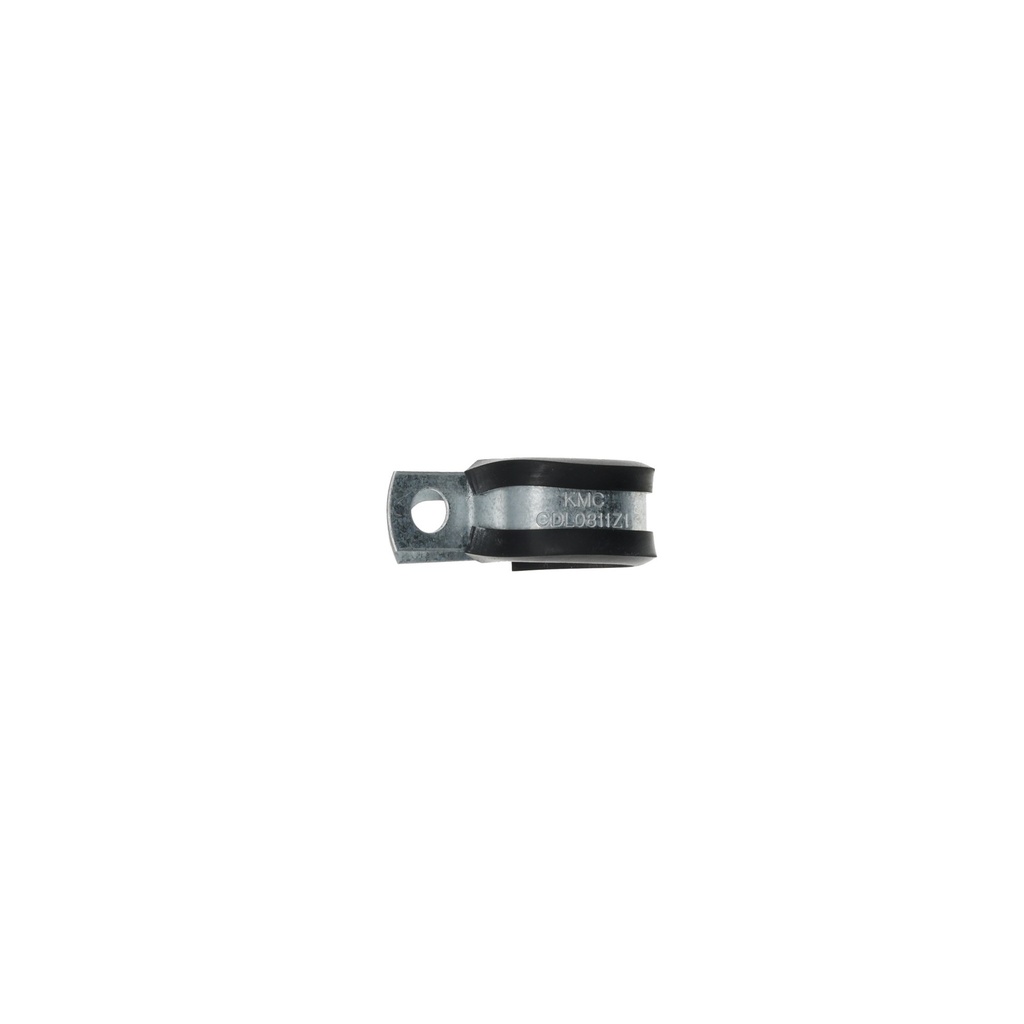

Toro Co. | 1/2" Double Hose Clamp, EDPM Lined | $ 10.99 | |
VHD06236
|
Toro Co. | 3/8" x 27" Hose, 3/8" MOR 90* Swivel x 3/8 MNPT | $ 45.99 | |
VHD06234
|
Toro Co. | 3/8" x 78" Hose, 3/8" FJIC x 1/2" MNPT | $ 56.99 | |
HYD13940
|
Toro Co. | 3/8FJIC x 3/8FJIC90 x 50 Hydraulic Hose | $ 78.99 | |
HYD13898
|
Toro Co. | Black Hose Wrap, 1.2" ID x 31" | $ 19.99 | |
HYD13899
|
Toro Co. | Black Hose Wrap, 1.2" ID x 37" | $ 15.99 | |
HDW20134
|
Toro Co. | Clamp, Hose, 1/2"-29/32" Dia | $ 1.99 | |
HYD21191
|
Toro Co. | Hose Assembly, 1/2 X 8.5, -08 Fjic, -10FJIC | $ 45.99 | |
HYD21200
|
Toro Co. | Hose Assembly, 1/2"X14 with sleeve, -08FJIC, -10FJ | $ 52.99 | |
HYD21198
|
Toro Co. | Hose Assembly, 1/2"X14.5 with sleeve, -08FJIC90 | $ 65.99 | |
HYD21215
|
Toro Co. | Hose Assembly, 5/8" x 72.0 with Sleeve, -10FJIC, -10 | $ 150.99 | |
HYD21216
|
Toro Co. | Hose Assembly, 5/8" x 79.0 with Sleeve, -10FJIC, -10 | $ 150.99 | |
MSC17846
|
Toro Co. | Hose Assembly-grease with Zerk Bulkhead | $ 48.99 | |
HDW05631
|
Toro Co. | Hose Clamp, 3/4" Hose, 1/4" Mtg Hole | $ 2.99 | |
HYD10728
|
Toro Co. | Hose Wrap, 36" | $ 10.99 | |
HYD13937
|
Toro Co. | Hose, 1/2 FORF 90 Short x 3/8 FJIC x 38 | $ 58.99 | |
HYD13895
|
Toro Co. | Hose, 1/4'' X 43'', 1/4''MNPT X 1/4''MNPT | $ 31.99 | |
HYD21624
|
Toro Co. | Hose, 3/8" X 23 1/2", 1/4"MP X 3/8"MOR | $ 53.99 | |
HYD21622
|
Toro Co. | Hose, 3/8" X 32", 1/4"MP X 1/4"MP | $ 45.99 | |
HYD21623
|
Toro Co. | Hose, 3/8" X 37", 1/4"MP X 1/4"MP | $ 48.99 | |
HYD21621
|
Toro Co. | Hose, 3/8" X 92.5", 1/4"MP X 3/8"MOR | $ 93.99 | |
HYD24646
|
Toro Co. | Hose, 3/8"X14", 3/8"FJIC X 3/8"MOR | $ 46.99 | |
HYD24645
|
Toro Co. | Hose, 3/8"X25", 3/8"FJIC X 3/8"MOR | $ 50.99 | |
HYD24644
|
Toro Co. | Hose, 3/8"X52", 3/8"FJIC X 3/8"MOR | $ 61.99 | |
HYD24643
|
Toro Co. | Hose, 3/8"X60", 3/8"FJIC X 3/8"MOR | $ 64.99 | |
HYD24642
|
Toro Co. | Hose, 3/8"X66", 3/8"FJIC X 3/8"MOR | $ 67.99 | |
HYD24641
|
Toro Co. | Hose, 3/8"X78, 3/8"FJIC X 3/8"MOR | $ 72.99 | |
HYD07042
|
Toro Co. | Hose, 3/8X42, 1/4MPX3/8MP | $ 35.99 | |
VHD06235
|
Toro Co. | Hose, 3/8X44, 3/8MOR90LVSWVLX3/8 | $ 52.99 | |
HYD09967
|
Toro Co. | Hydraulic Hose 1/4" x 14", 06MORB x 1/4MNPT | $ 21.99 | |
HYD07020
|
Toro Co. | Hydraulic Hose 1/4" x 15", 3/8MOR x 1/4MP | $ 22.99 | |
HYD01695
|
Toro Co. | Hydraulic Hose 1/4" x 15-1/2", 1/4MP x 1/4MP | $ 18.99 | |
HYD01606
|
Toro Co. | Hydraulic Hose 1/4" x 18", 1/4MP x 1/4MP | $ 21.99 | |
HYD09922
|
Toro Co. | Hydraulic Hose 1/4" x 18", 3/8MOR x 1/4MP | $ 27.99 | |
HYD01810
|
Toro Co. | Hydraulic Hose 3/8" x 34", 3/8MP x 1/4MP | $ 35.99 | |
HYD07575
|
Toro Co. | Hydraulic Hose 3/8" x 40", 1/4 MP x 3/8MOR | $ 39.99 | |
HYD01707
|
Toro Co. | Hydraulic Hose 3/8" x 48", 3/8MP x 1/4MP | $ 38.99 | |
HYD13939
|
Toro Co. | Hydraulic Hose, 1/4 FJIC x 3/8 JIC90 x 37 | $ 68.99 | |
HYD13608
|
Toro Co. | Hydraulic Hose, 1/4" x 10 1/4", 1/4" MNPT x 1/4" MNPT | $ 22.99 | |
HYD13896
|
Toro Co. | Hydraulic Hose, 1/4" x 49", 1/4 MNPT x 1/4" MNPT | $ 35.99 | |
HYD19121
|
Toro Co. | Hydraulic Hose, 3/8 x 40,3/8 MP x 1/4 MP | $ 41.99 | |
HYD19116
|
Toro Co. | Hydraulic Hose, 3/8 x 59-1/2, 1/4MP x 1/4MP | $ 50.99 | |
HYD19115
|
Toro Co. | Hydraulic Hose, 3/8 x 73-1/2, 1/4 MP x 1/4 MP | $ 57.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
