Boss Base Angles, Snow Catchers & Cutting Edge Straps
Reference:
BAL17560-03
Boss Base Angles, Snow Catchers & Cutting Edge Straps
The wear structure that sits behind a BOSS cutting edge. Base angle weldments are the heavy steel members the edge bolts to; they are listed here for DXT V-plows (8'2", 9'2", 10'), TEV V-plows (8'2", 9'2") and super-duty and standard trip-edge straight blades (7'6" to 10'), with the trip-edge base angle pivot pin kit. Snow catchers and pans (gutters) close the gap at the center of DXT and TEV V-plows, stainless bolt straps back the edge bolts on DXT and V-XT blades, and poly cutting edge straps fit flat-top Power-V blades. Also here: the box wing cutting edge and strap, EXT curb guards, the RTII snow catcher kit and snow catcher mounting plate.
Key Features & Upfitter Specs
- Base Angles: Driver and passenger base angle weldments for DXT and TEV V-plows and full-width base angles for super-duty and standard trip-edge straight blades.
- Snow Catchers & Pans: DXT (8'2"/9'2", 10') and TEV snow catchers, TEV pans/gutters, RTII snow catcher kit and mounting plate.
- Straps & Guards: Stainless bolt straps, Power-V poly cutting edge straps, box wing edge and strap, and EXT curb guards.
- Genuine BOSS: Factory-original service parts, so fit, finish and material match what came on the equipment.
- Warranty: Covered by the 1-year BOSS parts and accessories warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Part | 10' DXT Base Angle Weldment, 10' DXT Driver Side Snow Catcher, 10' DXT Passenger Side Base Angle Weldment, 10' DXT Passenger Side Snow Catcher, 7'6" Base Angle Trip Edge Super-Duty, 7'6" Flat Top Power-V Driver Side Poly Cutting Edge Strap V Blade, 7'6" Flat Top Power-V Passenger Side Poly Cutting Edge Strap, 8' Base Angle, 8'2" & 9'2" DXT Driver Side Snow Catcher, 8'2" & 9'2" DXT Passenger Side Snow Catcher, 8'2" DXT Driver Side Base Angle Weldment, 8'2" DXT Passenger Side Base Angle Weldment, 8'2" DXT Stainless Steel Bolt Strap, 8'2" Flat Top Power-V Driver Side Poly Cutting Edge Strap, 8'2" Flat Top Power-V Passenger Side Poly Cutting Edge Strap, 9' Base Angle Trip Edge Super-Duty, 9'2" DXT Driver Side Base Angle Weldment, 9'2" DXT Passenger Side Base Angle Weldment, 9'2" DXT Stainless Steel Bolt Strap, 9'2" Flat Top Power-V Driver Side Poly Cutting Edge Strap, 9'2" Flat Top Power-V Passenger Side Poly Cutting Edge Strap, 9'2" V-XT Stainless Steel Bolt Strap, Base Angle Assembly, 10.0 Tripedge, Base Angle Assembly, Left Hand, 8'2" TEV, Base Angle Assembly, Left Hand/Driver Side, 9'2" TE-V, Base Angle Assembly, Right Hand, 9'2" TEV, Base Angle Assembly, Right Hand/Passenger Side, 8'2" TEV, Base Angle Pivot Pin Kit, Trip-Edge Plow, Cutting Edge, BOX Wing, EXT Curb Guard Driver Side, EXT Curb Guard Passenger Side, Mounting Plate, Snow Catcher, Pan, Left Hand/Driver Side, 8'2", TEV, Pan, Left Hand/Driver Side, 9'2", TE-X, Pan, Left Hand/Driver Side, 9'2", TEV, Pan, Right Hand/Passenger Side 8'2" TEV, RTII V-Plow Snow Catcher Kit (set of 2), Snow Catcher, Left Hand/Driver Side, 8'2"&9'2" TEV, Snow Catcher, Right Hand/Passenger Side, 8'2"&9'2" TEV, Strap, Cutting Edge, BOX Wing |
| Manufacturer | Toro Co. |
| Tags | |
|---|---|
Tags |
|
Part Numbers & Pricing 40 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Part | Price | Select |
|---|---|---|---|---|
BAL17560-03
|

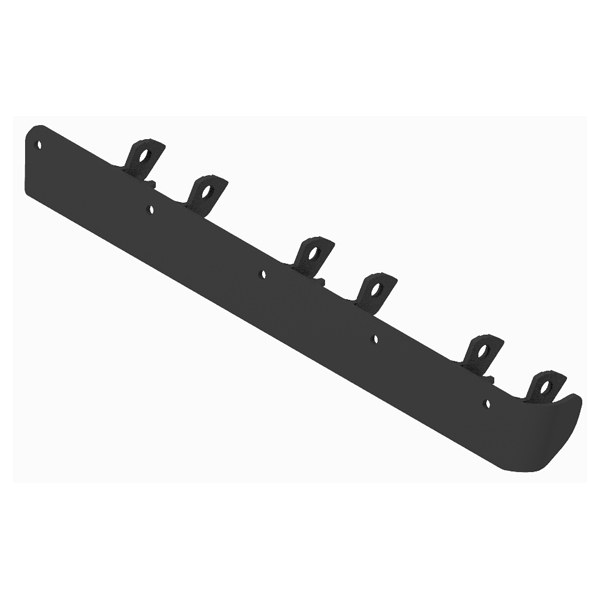

Toro Co. | 10' DXT Base Angle Weldment | $ 682.99 | |
BAL17565-03
|
Toro Co. | 10' DXT Driver Side Snow Catcher | $ 71.99 | |
BAR17570-03
|
Toro Co. | 10' DXT Passenger Side Base Angle Weldment | $ 682.99 | |
BAR17575-03
|
Toro Co. | 10' DXT Passenger Side Snow Catcher | $ 71.99 | |
TRP07862-03
|
Toro Co. | 7'6" Base Angle Trip Edge Super-Duty | $ 773.99 | |
BAL08977-03
|
Toro Co. | 7'6" Flat Top Power-V Driver Side Poly Cutting Edge Strap V Blade | $ 58.99 | |
BAR08976-03
|
Toro Co. | 7'6" Flat Top Power-V Passenger Side Poly Cutting Edge Strap | $ 58.99 | |
TRP07811-03
|
Toro Co. | 8' Base Angle | $ 776.99 | |
BAL18160-03
|
Toro Co. | 8'2" & 9'2" DXT Driver Side Snow Catcher | $ 66.99 | |
BAR18170-03
|
Toro Co. | 8'2" & 9'2" DXT Passenger Side Snow Catcher | $ 66.99 | |
BAL18125-03
|
Toro Co. | 8'2" DXT Driver Side Base Angle Weldment | $ 368.99 | |
BAR18135-03
|
Toro Co. | 8'2" DXT Passenger Side Base Angle Weldment | $ 368.99 | |
BAX18156-03
|
Toro Co. | 8'2" DXT Stainless Steel Bolt Strap | $ 25.99 | |
BAL08928-03
|
Toro Co. | 8'2" Flat Top Power-V Driver Side Poly Cutting Edge Strap | $ 60.99 | |
BAR08929-03
|
Toro Co. | 8'2" Flat Top Power-V Passenger Side Poly Cutting Edge Strap | $ 60.99 | |
TRP07884-03
|
Toro Co. | 9' Base Angle Trip Edge Super-Duty | $ 909.99 | |
BAL18130-03
|
Toro Co. | 9'2" DXT Driver Side Base Angle Weldment | $ 393.99 | |
BAR18140-03
|
Toro Co. | 9'2" DXT Passenger Side Base Angle Weldment | $ 393.99 | |
BAX18157-03
|
Toro Co. | 9'2" DXT Stainless Steel Bolt Strap | $ 28.99 | |
BAL09381-03
|
Toro Co. | 9'2" Flat Top Power-V Driver Side Poly Cutting Edge Strap | $ 63.99 | |
BAR09382-03
|
Toro Co. | 9'2" Flat Top Power-V Passenger Side Poly Cutting Edge Strap | $ 63.99 | |
BAX18718-03
|
Toro Co. | 9'2" V-XT Stainless Steel Bolt Strap | $ 32.99 | |
TRP16596-03
|
Toro Co. | Base Angle Assembly, 10.0 Tripedge | $ 698.99 | |
BAL26872-03
|
Toro Co. | Base Angle Assembly, Left Hand, 8'2" TEV | $ 331.99 | |
BAL26721-03
|
Toro Co. | Base Angle Assembly, Left Hand/Driver Side, 9'2" TE-V | $ 354.99 | |
BAR26960-03
|
Toro Co. | Base Angle Assembly, Right Hand, 9'2" TEV | $ 354.99 | |
BAR26871-03
|
Toro Co. | Base Angle Assembly, Right Hand/Passenger Side, 8'2" TEV | $ 331.99 | |
TRP07879
|
Toro Co. | Base Angle Pivot Pin Kit, Trip-Edge Plow | $ 67.99 | |
BAX13878
|
Toro Co. | Cutting Edge, BOX Wing | $ 54.99 | |
STB19295-03
|
Toro Co. | EXT Curb Guard Driver Side | $ 88.99 | |
STB19290-03
|
Toro Co. | EXT Curb Guard Passenger Side | $ 88.99 | |
MSC01820-03
|
Toro Co. | Mounting Plate, Snow Catcher | $ 0.99 | |
BAL26882-03
|
Toro Co. | Pan, Left Hand/Driver Side, 8'2", TEV | $ 44.99 | |
BAL26723-03
|
Toro Co. | Pan, Left Hand/Driver Side, 9'2", TE-X | $ 54.99 | |
BAR26715-03
|
Toro Co. | Pan, Left Hand/Driver Side, 9'2", TEV | $ 54.99 | |
BAR26881-03
|
Toro Co. | Pan, Right Hand/Passenger Side 8'2" TEV | $ 44.99 | |
MSC01591
|
Toro Co. | RTII V-Plow Snow Catcher Kit (set of 2) | $ 57.99 | |
BAL26798-03
|
Toro Co. | Snow Catcher, Left Hand/Driver Side, 8'2"&9'2" TEV | $ 64.99 | |
BAR26797-03
|
Toro Co. | Snow Catcher, Right Hand/Passenger Side, 8'2"&9'2" TEV | $ 64.99 | |
BAX13879-03
|
Toro Co. | Strap, Cutting Edge, BOX Wing | $ 6.99 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
