Egis Ignition Relay / Timer

Egis Ignition Relay / Timer

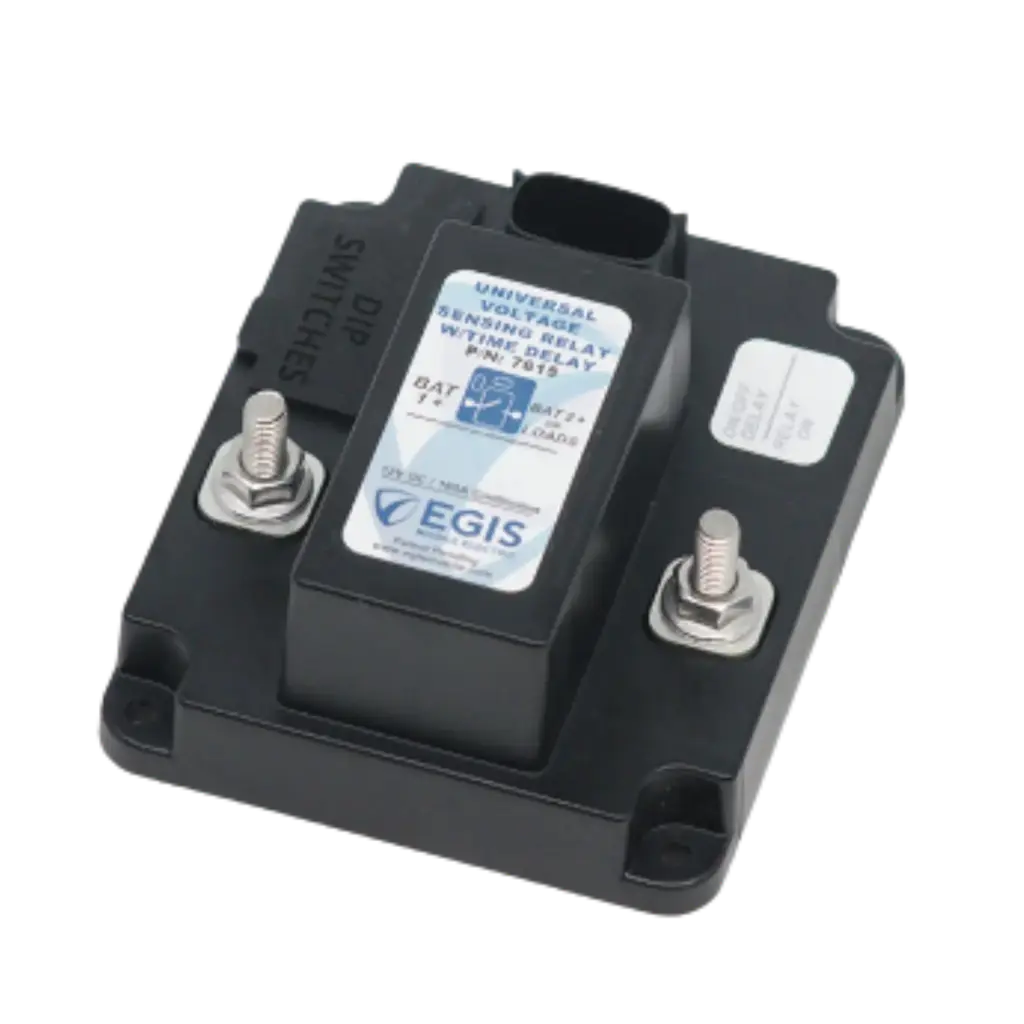

Permanently solve the problem of dead fleet batteries caused by auxiliary equipment left running with the Egis 7618B Universal Voltage Sensitive Relay (U-VSR). This highly advanced, 160-Amp continuous relay serves as four devices in one: a Time Delay Relay, a Low Voltage Disconnect (LVD), an Automatic Charging Relay (ACR), or a simple heavy-duty solenoid. With an adjustable off-delay ranging from 0 seconds to 16 hours and an industry-leading low power draw of just 1.3 mA, it is the ultimate power management tool for modern emergency vehicles.

Key Features & Upfitter Specs

• Current Capacity: Robust design handles 160 Amps continuous current and withstands massive intermittent loads up to 240 Amps.
• Time Delay: Fully adjustable off-delay timer (0 seconds to 16 hours) keeps MDTs and radios powered during shifts without killing the battery overnight.
• Low Voltage Disconnect: Features adjustable Low Voltage Protection (LVP) between 11.5 and 12.1 VDC to guarantee the engine will crank.
• Triggering Options: Intelligent system can be triggered via a hardwired ignition signal, alternator voltage sensing, or both.
• Efficiency: Industry-leading hibernation mode draws a mere 1.3 mA, preventing parasitic drain during long-term vehicle storage.
