Egis Fuse Block

Egis Fuse Block

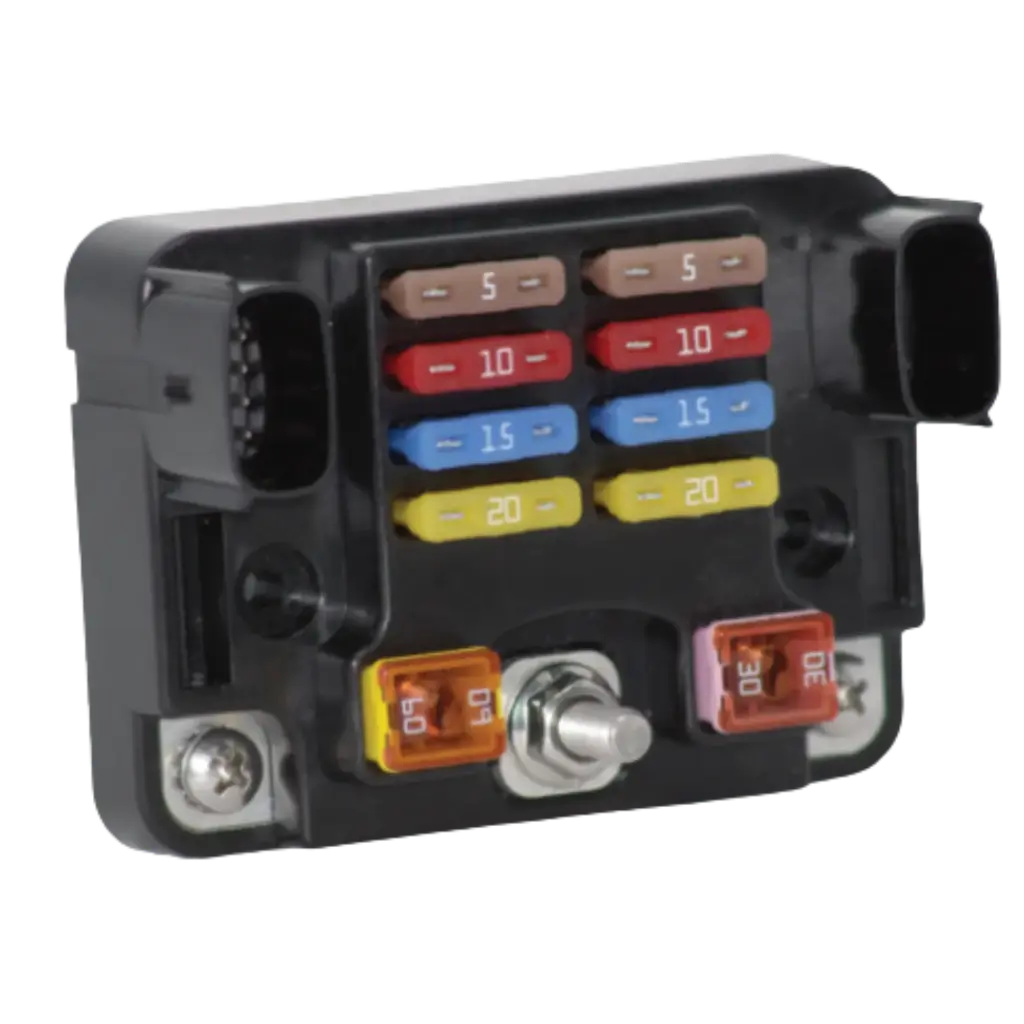

Dramatically clean up the electrical architecture of your upfit with the Egis Mobile Electric 5015B CT-Series Compact Fuse Block. This highly innovative "8+2" distribution block eliminates the need for multiple separate fuse panels by combining low-amp and high-amp circuit protection into a single, space-saving footprint. Capable of handling 200 Amps of total continuous current, it provides eight positions for standard ATO/ATC fuses (ideal for radios and sirens) alongside two positions for high-power Low-Profile JCASE fuses (perfect for lightbars and heavy motors).

Key Features & Upfitter Specs

• Total Capacity: Engineered to safely process up to 200 Amps of total continuous current across an 8–36V DC operating range.
• Hybrid Configuration: Features 8 low-amp ATO/ATC fuse positions (max 20A per circuit) and 2 high-amp LP JCASE fuse positions (max 60A per circuit).
• Connections: Utilizes highly reliable, moisture-sealed MX-150 (USCAR) plug connectors for the low-amp circuits to prevent corrosion-induced failures.
• Construction: Built from extreme-temperature polymers and equipped with stainless steel self-locking M5 termination studs.
• Organization: Includes a protective snap-on cover featuring recessed areas perfectly sized for circuit identification labels.
